Hard Coatings

About

Research on hard coatings based on transition metal nitrides (e.g., AlTiN, CrAlN) and transition metal diborides (e.g., TiB₂, ZrB₂, TaB₂, VB₂) has been an active field due to the demand for advanced materials with superior wear resistance, hardness, and thermal stability. The primary focus is on optimizing their properties through innovative deposition methods, microstructural tuning, and the development of multilayer or composite coatings. Material design of the coatings is also supported by ab initio calculations using Quantum Espresso and VASP software.

Key Research Areas

• Microstructural Optimization
  • Grain Size Reduction: Nanostructured coatings are being developed to improve hardness through grain boundary strengthening mechanisms.
  • Phase Composition and Stability: Studies explore the formation of mixed phases or solid solutions (e.g., Ti-Al-N, Cr-Al-N) to enhance mechanical and thermal properties.
• Multilayer and Superlattice Coatings

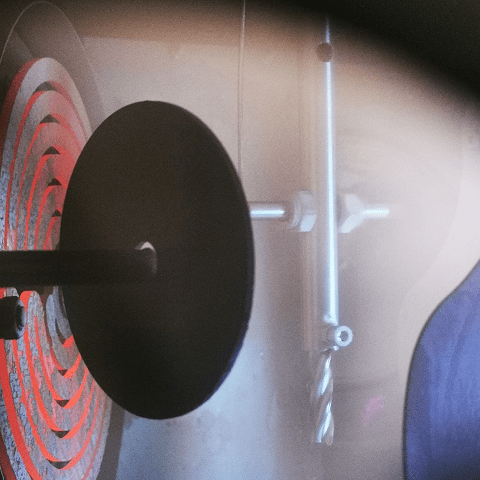

: Research focuses on multilayer structures that alternate between different materials, such as ZrB₂/TiB₂, TiB₂/TaB₂. These designs improve toughness, reduce crack propagation, and offer better thermal barrier properties.

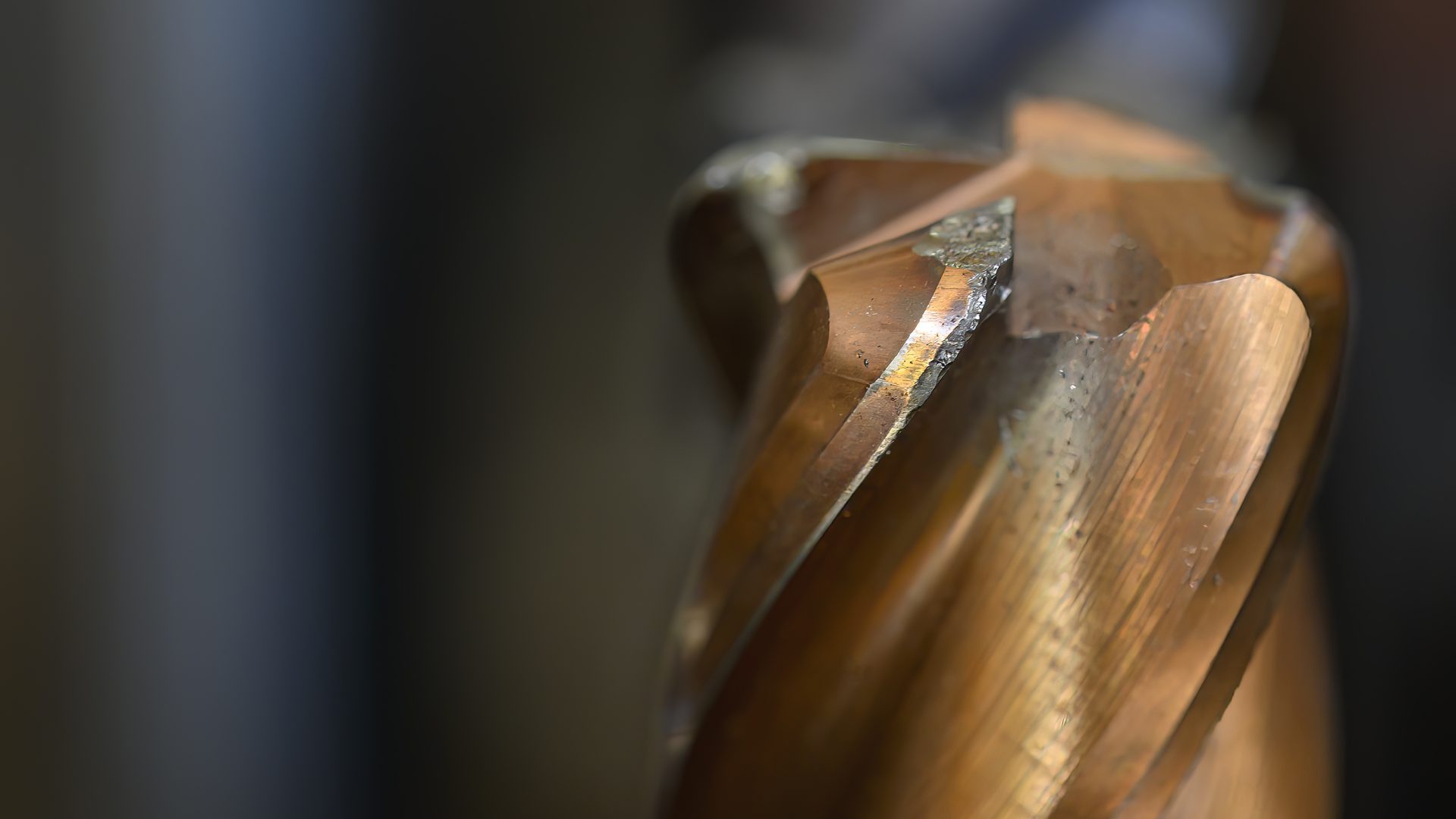

• High-Temperature Performance: Oxidation resistance is critical for high-temperature applications like turbine blades and cutting tools. Coatings like CrSiN and TiSiB2 have been extensively studied for their ability to form protective oxide layers at elevated temperatures. Studies also explore the thermal stability of diborides, such as VB₂, for aerospace applications.
• Mechanical Properties
: Superhard Coatings: Research aims to achieve hardness values exceeding 40 GPa, often through nanocomposite structures (e.g., TiB₂, TaB₂)
• Reactive PVD Processes
: Investigations into reactive sputtering or arc evaporation methods are improving coating quality. For instance, controlling the nitrogen or boron partial pressure during deposition can significantly impact the stoichiometry and properties of the resulting coatings.

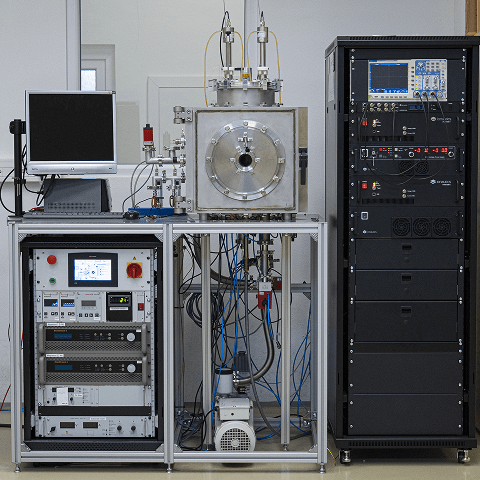

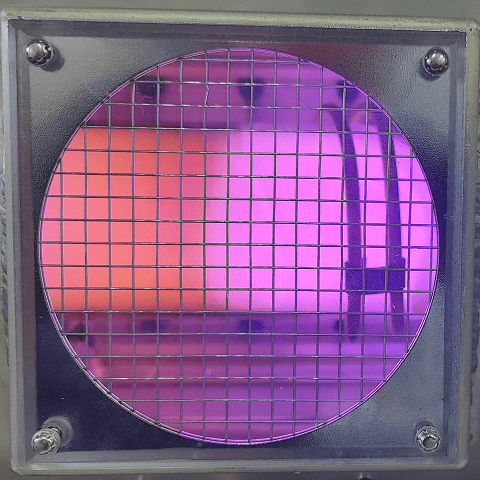

  • High Power Impulse Magnetron Sputtering (HiPIMS) and High Target Utilisation sputtering (HiTUS): This advanced PVD technique is being explored for its ability to produce denser coatings with improved adhesion and microstructure control.
• Hybrid and Functional Coatings
: Self-Lubricating Coatings: solid lubricants like MoS₂, WS₂, Mo-S-N, W-S-N coatings that reduce friction in dry, vacuum or high-temperature conditions.

Emerging Trends and Novel Materials

• Doping and Alloying:
Studies on the effects of doping with elements like Si, Al, Nb, Ta, or Y aim to improve the oxidation resistance, toughness, resistance to crack propagation and mechanical properties of TMN and TMB2 coatings.

Challenges and Future Directions

The continued development of PVD coatings is expected to lead to materials that combine multiple superior properties, enabling their use in increasingly demanding applications.

• Residual Stress and Adhesion
: Balancing hardness with toughness remains a challenge, as high hardness often correlates with brittleness.
• Scaling Up for Industrial Use
: Ensuring the scalability and economic viability of advanced PVD processes for mass production.
• Sustainability: Research is also focusing on reducing the environmental impact of coating production and improving recyclability.
